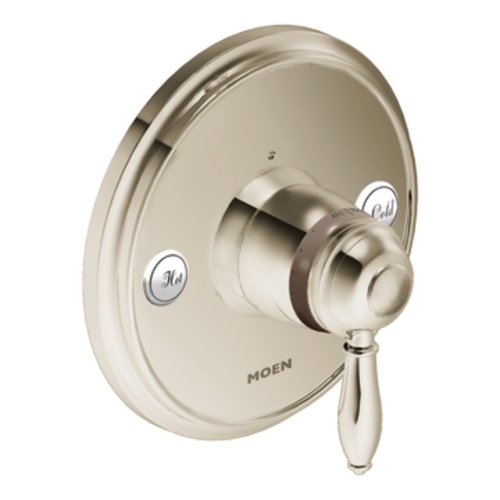

Moen Weymouth ExactTemp® Valve Only Trim

Weymouth ExactTemp® Options




Weymouth ExactTemp® Features

  • TS32110 – Chrome
  • TS32110NL – Nickel
  • TS32110ORB – Oil Rubbed Bronze
  • TS32110BN – Brushed Nickel
  • Metal construction with various finishes identified by suffix
  • For use with S3371, 3/4” thermostatic valve and S3600, volume control valve

Weymouth ExactTemp® Operation

  • Flow lever operates counterclockwise through a 90° arc with shut off at 6 o’clock and maximum flow at the 3 o’clock position. Shut off in clockwise direction
  • Temperature lever operates through a 340° arc with maximum cold at full clockwise rotation and maximum hot at full counterclockwise rotation
  • Safety stop preset temperature at 105°F (41°C)
  • Safety stop override allows maximum temperature at 120°F (49°C)
  • Factory established temperature range from 70°F (21°C) to 120°F (49°C)
  • Shower: Two function, rain and rinse: operate lever to select

Weymouth ExactTemp® Flow

  • Showerhead is limited to 2.5 gpm (9.5 L/min) at 80 psi

Weymouth ExactTemp® Cartridge

  • 130156 thermostatic cartridge design with non metallic/nonferrous materials
  • 130157 volume ceramic disc cartridge design

Weymouth ExactTemp® Standards

  • Third party certified to: ASME A112.18./CSA B-125.1, ASSE1016 and all applicable requirements referenced therein
  • ADA for lever handle

Weymouth ExactTemp® Warranty

  • Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser
  • 5 year warranty if used in commercial installations
Moen Shower Rough-in Valve

Moen S3371 ExactTemp Rough-In Valve

FEATURES:
  • M-PACT common valve system
  • Set precise temperature
  • Temperature limit preset at 105 Degree F with integral override feature
  • Water temperature delivery does not exceed 120 Degree Fahrenheit
  • 4-Port

Arzo® Monitor® 17 Series Valve Only Trim

  • Separate volume and temperature controls for maximum comfort. Handle adjusts volume; dial on handle controls temperature.
  • Pressure Balance with Volume control
  • Easy to use lever handle included
  • Faucet and Finish Lifetime Limited Warranty
  • Monitor® Scald-Guard® valve keeps water temperature within +/-3ºF.
  • For use with MultiChoice Universal rough valve body.
  • Solid brass construction ensures quality and reliability.
