Home Delta Trinsic® Monitor® 14 Series Valve Only Trim
Delta Trinsic® Monitor® 14 Series Valve Only Trim

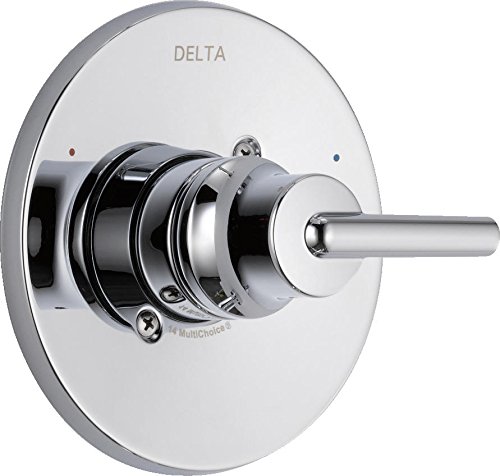

- T14059 – Chrome

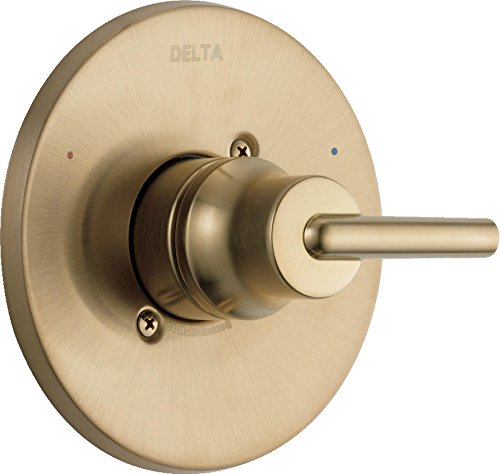

- T14059-CZ – Champagne Bronze
- T14059-RB – Venetian Bronze

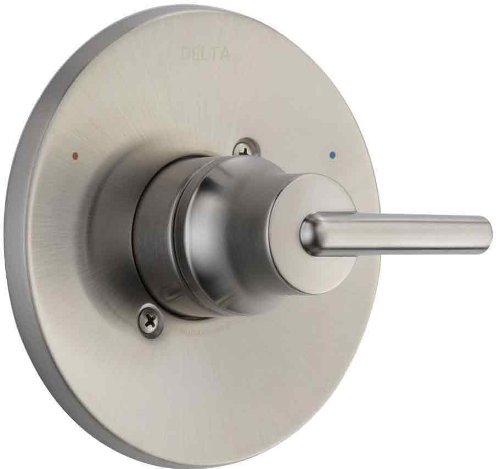

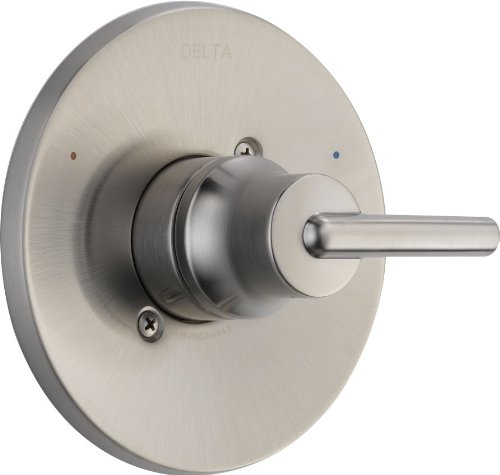

- T14059-SS – Stainless Steel
- Monitor® 14 Series pressure balanced single handle bath mixing valve trim
- Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
- For use with MultiChoice® Universal rough valve body. (R10000 Series)
- Temperature only controlled with handle.
- Field adjustable to limit handle rotation into hot water zone.
- 120° maximum handle rotation.
- 2.00 gpm @ 80 psi, 7.60 L/min @ 550 kPa
- Red/blue pad print temperature indicator on the temperature adjustment dial.
- 1/2″ CWT slip-on spout adapter
- Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4″ wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
- Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.
- 5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase. No warranty is provided on batteries.
FEATURES:
- Universal single box model
- Accepts single, dual, or dual thermostatic cartridge
- Trim (screws and sponges) sold separately and includes appropriate cartridge
- Back-to-back capability
- Brass construction
- Allows easy fixture changes without behind-the-wall plumbing alterations
FEATURES:
- For high flow shower only
- HF rough valves feature blocked tub port
- No additional plug needed when used in shower only application
- Back-to-back capability
FEATURES:
- Universal with stops
- Accepts single, dual, or dual thermostatic cartridge
- Trim sold separately and includes appropriate cartridge
- Back-to-back capability
- Trim must be ordered separately
- Cartridge ships with trim
FEATURES:
- For high flow with stops
- MultiChoice Universal valve body only - Accepts single, dual, or dual thermostatic cartridge
- High flow for use with shower only models
- HF rough valves feature blocked tub port - no additional plug needed when used in shower only application
- Back-to-back capability
- WS = With Stops
- Finish is highly reflective for a mirror–like look that works with any decorating style
- Lever handles make it easy to adjust the water
- Equipped with the Moentrol® pressure–balancing control valve: control allows you to adjust both water volume and temperature; pressure–balancing feature helps maintain temperature even when other water sources in the house are in use
- Built on the Moen M–PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
- Complies with Americans with Disabilities Act (ADA) specifications
- Limited lifetime warranty
- Valve 2510 or 2590 or 2570 or 2520 not included
